GLM In-Row Deck Mower
GLM4
A unique deck mower with two under-the-vine mowing heads to cut grass between plants in the row of a vineyard/orchard. An ideal series mower suited for smaller compact tractors from 18 Hp and super narrow vineyard row spacings. Gas spring actuated cutting heads clean gently around the base of vines/trees. The overall reach of both cutting disks can be adjusted hydraulically from the tractor.
Heavy duty design and construction ensures many years of reliable service.. Mechanically (belt-driven) independent in-row cutting heads. Fully adjustable reach for in-row cutting heads to fit row spacings between 5-7สน wide.
| Model |  Tractor Size |
 Weight |
 Cutting Disks |
 EXT. DIMENSIONS MIN (A)–MAX (B) |
 ROW SPACING |
|---|---|---|---|---|---|
| GLM4/45—110-190 | 18-35 Hp | 407 | 18" | 47-75" | 5.5-6' |
| GLM4/45—120-200 | 18-35 Hp | 418 | 18" | 49-78" | |
| GLM4/45—130-210 | 18-35 Hp | 429 | 18" | 50-83" | |
| GLM4/45—140-220 | 18-35 Hp | 440 | 18" | 54-86" | |
| GLM4/45—150-230 | 18-35 Hp | 451 | 18" | 59-91" | 6-7' |
| GLM4/45—160-240 | 18-35 Hp | 462 | 18" | 63-95" |
Features for GLM In-Row Deck Mower

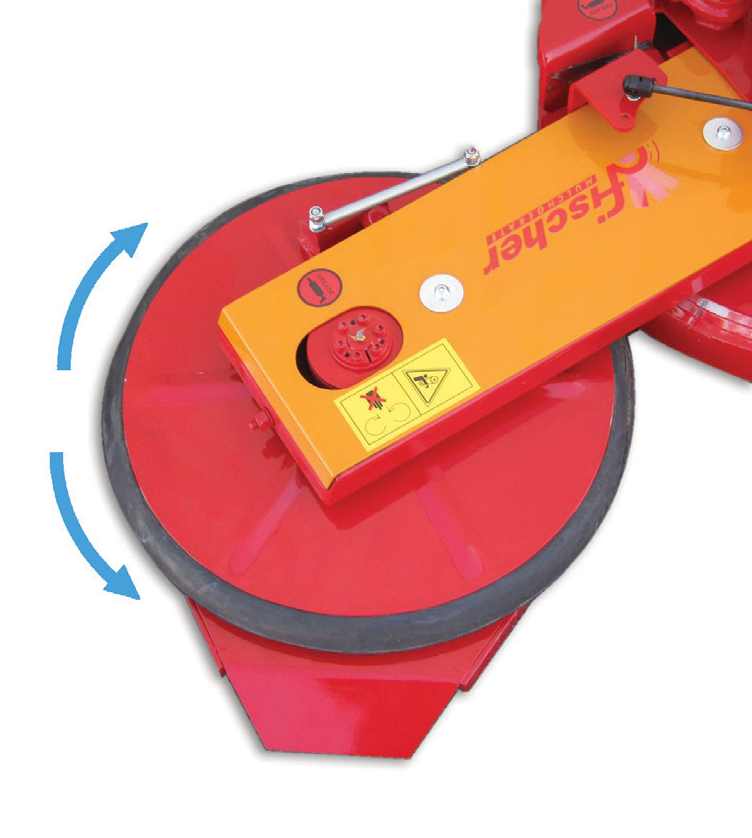

Oscillating cutting head with rubber bumper “rolls” around vines / stakes

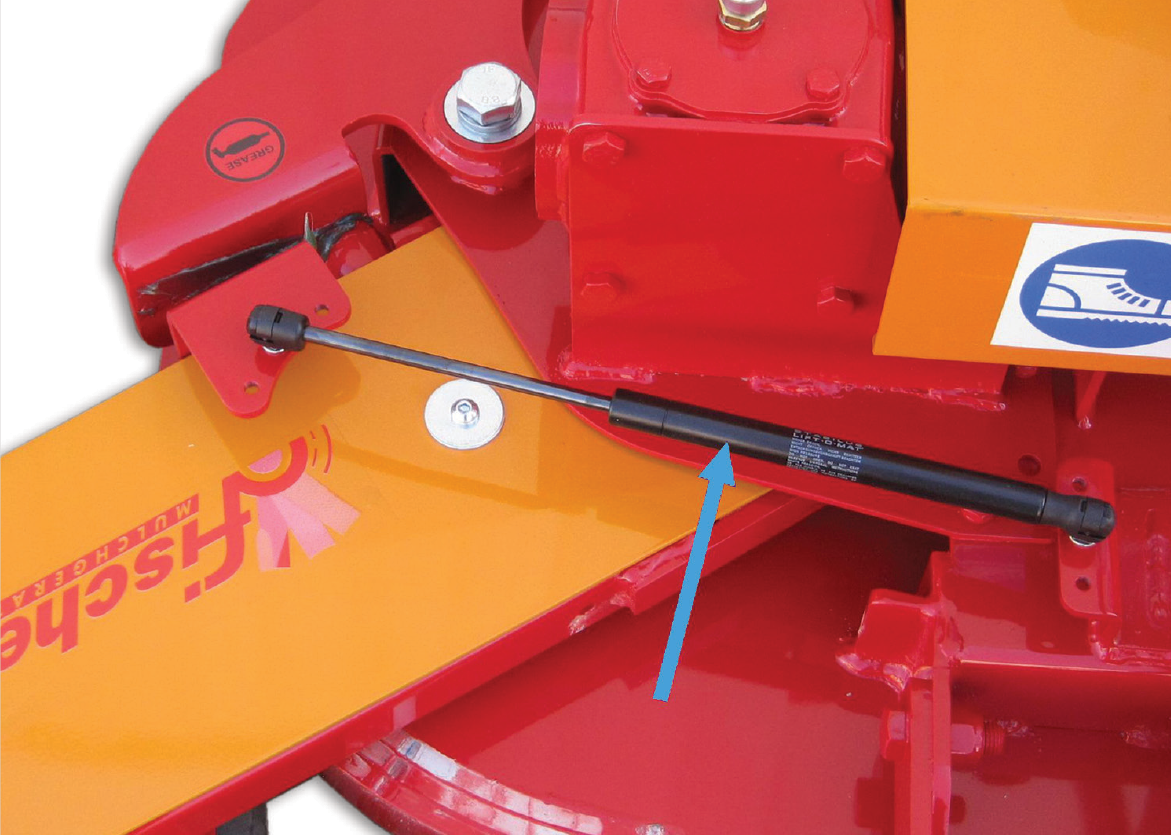

Heavy duty gas spring shocks on each swing arm
